  337nm.com  >  VSL-337i OEM Nitrogen Laser

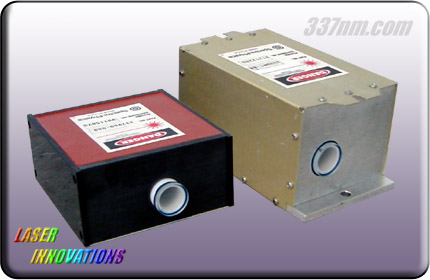

Laser Innovations can refurbish your VSL-337i OEM nitrogen laser or laser plasma cartridges. We support Spectra Physics, Bruker Daltronics, Thermo Laser Science and Laser Science (LSI) nitrogen laser systems.

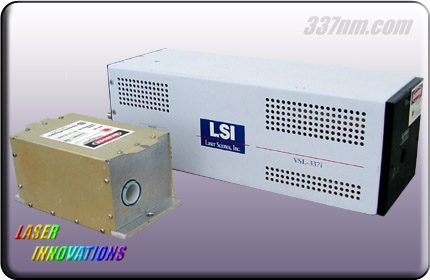

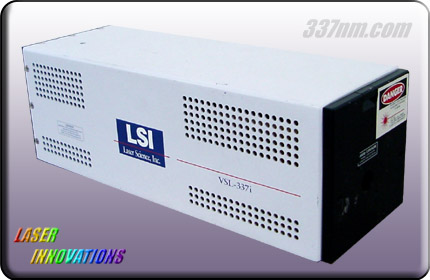

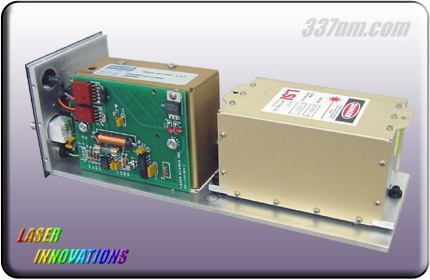

VSL-337i  Laser Science Nitrogen Laser    337nm.com    Laser Innovations  VSL-337i  Laser Science Nitrogen Laser    337nm.com    Laser Innovations
VSL-337i  Laser Science Nitrogen Laser    337nm.com    Laser Innovations  VSL-337i  Laser Science Nitrogen Laser    337nm.com    Laser Innovations

Specifications
Optical Characteristics VSL-337i OEM VSL-337
Wavelength 337.1 nm 337.1 nm
Spectral Bandwidth 0.1 nm 0.1 nm
Repetition Rate 1 - 20 Hz
External Trigger
Up to 20 Hz
External Trigger
Pulse Width, FWHM 4 ns 4 ns
Pulse Energy 150 µJ 120 µJ
Pulse-to-Pulse Energy Stability 3% std. dev @ 10 Hz 3% std. dev @ 10 Hz
Peak Power 36 kW 40 kW
Average Power 3 mW @ 20 Hz 2 mW @ 10 Hz
Beam Size 3 x 7 mm 3 x 8 mm
Beam Divergence, Full Angle 3 x 8 mrad 0.5 mrad typical
Electrical Characteristics VSL-337i OEM VSL-337
External Trigger TTL, Optoisolated TTL
Trigger In to Optical Pulse Out <700ns; <20 ns
std. dev. jitter
---
Power Consumption 24 W @ 20 Hz 20 W @ 10 Hz
Electric Service Requirements VSL-337i OEM VSL-337
Voltage +24 VDC 115 VAC, 0.5 A
Current 3 A Peak
1 A average @ 20 Hz
<1 A Peak
600 mA average @ 10 Hz
Environment VSL-337i OEM VSL-337
Temperature Range 4 - 40°C
(40 - 105°F)
4 - 40°C
(40 - 105°F)
Humidity (non-condensing) 0 - 95% 0 - 95%
Altitude 0 - 3000 m
(0 - 9800 ft)
0 - 3000 m
(0 - 9800 ft)

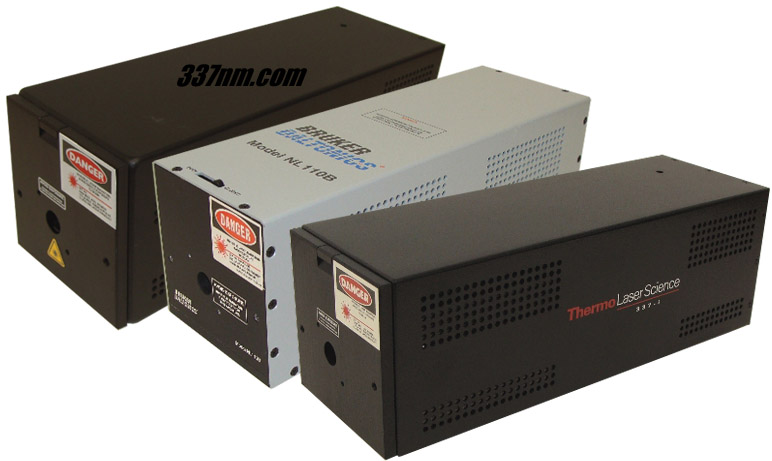

VSL-337i Nitrogen Lasers

left - Spectra Physics               middle - Bruker Daltronics NL 110B               right - Thermo Laser Science
