  337nm.com  >  VSL-337ND Nitrogen Laser

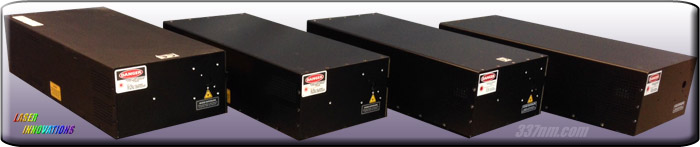

    Laser Innovations can refurbish your Spectra Physics VSL-337ND nitrogen laser systems.

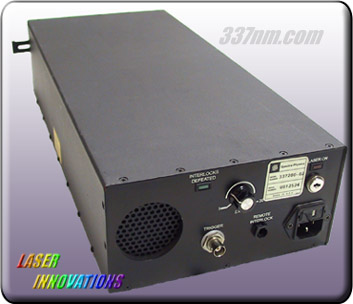

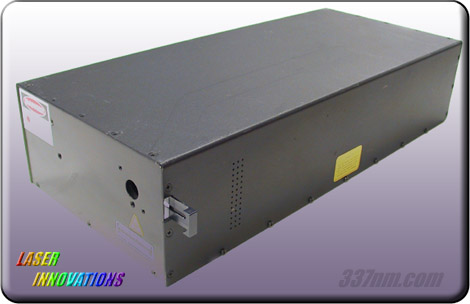

Spectra Physics VSL-337ND Nitrogen Laser 337nm.com Laser Innovations  Spectra Physics VSL-337ND Nitrogen Laser Laser Innovations

Specifications
Optical Characteristics VSL-337ND VSL-337ND-S
Wavelength 337.1 nm 337.1 nm
Spectral Bandwidth 0.1 nm 0.1 nm
Repetition Rate
  Ext Trig		 <1 - 20 Hz 1 - 30 Hz
up to 60 Hz burst mode
Pulse Width, FWHM <4 ns <4 ns
Pulse Energy 260 µJ @ 10 Hz 260 µJ @ 10 Hz
Pulse-to-Pulse Energy Stability ≤ 4.5% std. dev ≤ 4.5% std. dev
Peak Power 65 kW 65 kW
Average Power 5.2 mW @ 20 Hz 5.2 mW @ 20 Hz
Beam Size 8 x 8 mm 8 x 8 mm
Beam Divergence, Full Angle 0.5 mrad 0.5 mrad
Electrical Characteristics VSL-337ND VSL-337ND-S
External Trigger TTL, Optoisolated TTL, Optoisolated
Trigger In to
Optical Pulse Out		 1000 ns
 ≤ 90 ns std dev jitter		 1000 ns
 ≤ 90 ns std dev jitter
Power Consumption 150 W @ 10 Hz 150 W @ 10 Hz
Optosync Output NA TTL 50Ω
Optical Pulse to Optosync Delay NA 50 ns delay
<500 ps std dev jitter
Burst Input NA TTL
HI = disabled
Electric Service Requirements VSL-337ND VSL-337ND-S
Voltage
     Using External Supply
     Direct
100 or 220 VAC
(universal input)

100 or 220 VAC
(universal input)

Current (Single) 1.5 A @ 110 VAC
1.0 A @ 220 VAC		 1.5 A @ 110 VAC
1.0 A @ 220 VAC
Frequency 50/60 Hz 50/60 Hz
Environment VSL-337ND VSL-337ND-S
Temperature Range 4 - 40°C
(40 - 105°F)		 4 - 40°C
(40 - 105°F)
Humidity (non-condensing) 0 - 95% 0 - 95%
Altitude 0 - 3000 m
(0 - 9800 ft)		 0 - 3000 m
(0 - 9800 ft)

VSL-337ND Nitrogen Laser 337nm.com Laser Innovations
